Technical designation: CCGT09T302M-BK

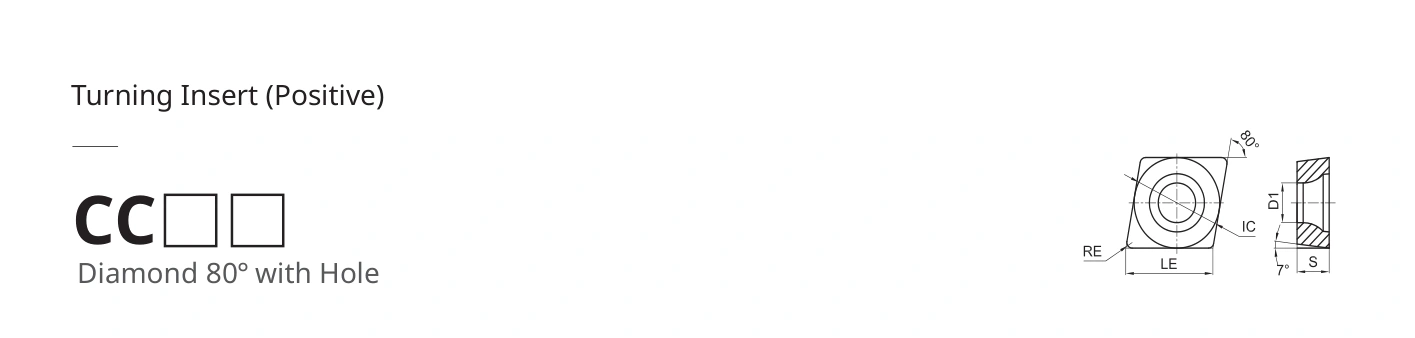

Positive turning insert, 80° rhombic, with hole. Inscribed circle diameter 9.525 mm; Thickness 3.97 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 96 · View full tableData for CCGT09T302M-BK
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 96 of the original PDF ↗
