Technical designation: CCGX09T308-AL
Positive turning insert, 80° rhombic, with hole. Inscribed circle diameter 9.525 mm; Thickness 3.97 mm; Nose radius 0.8 mm.
Price and availability to be confirmed in the quotation.

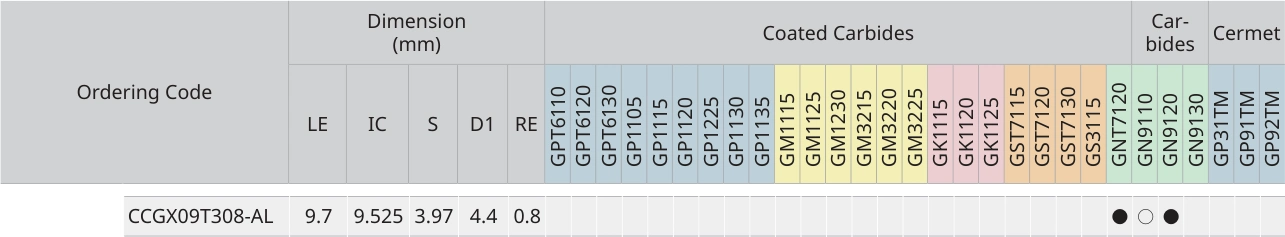

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 60 · View full tableData for CCGX09T308-AL
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 60 of the original PDF ↗
