Turning / Technical reference
Technical designation: CNMG090304-SM

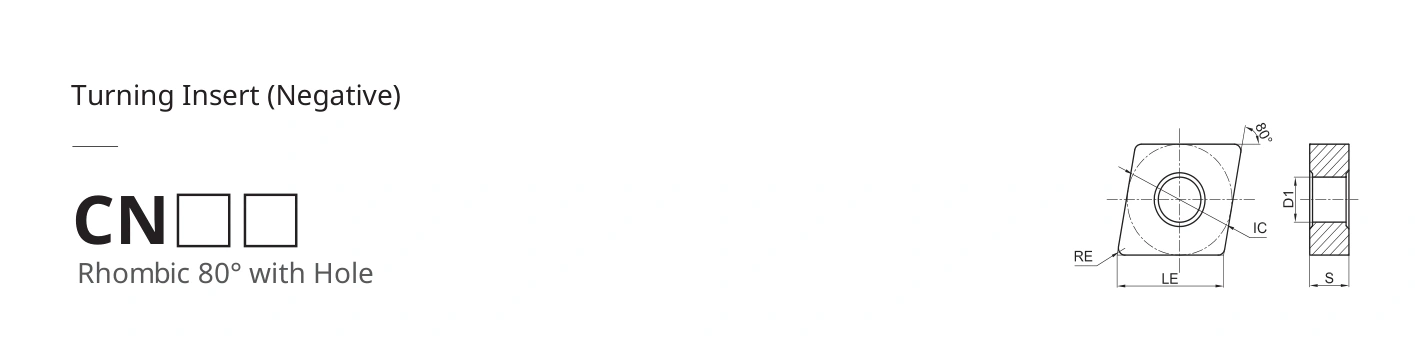

Negative turning insert, 80° rhombic, with hole. Inscribed circle diameter 9.525 mm; Thickness 3.18 mm; Nose radius 0.4 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 38 · View full tableData for CNMG090304-SM
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 38 of the original PDF ↗
