SDM-DCMT11T304-MM

Name: SDM-DCMT11T304-MM
Brand: SDM Cutting Tools
SKU: SDM-DCMT11T304-MM

Technical designation: DCMT11T304-MM

Positive turning insert, 55° rhombic, with hole. Inscribed circle diameter 9.525 mm; Thickness 3.97 mm; Nose radius 0.4 mm.

Price and availability to be confirmed in the quotation.

Drawing and dimensions

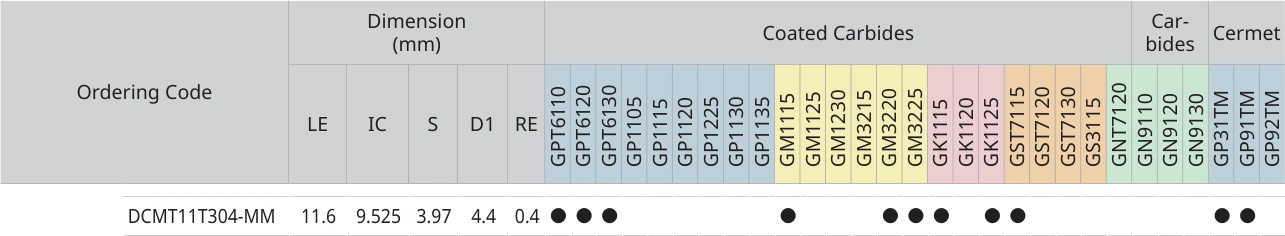

Data for DCMT11T304-MM

Original headers and row for DCMT11T304-MM. On mobile, swipe to see all columns.

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
