Turning / Technical reference
Technical designation: DNMG110404-SF

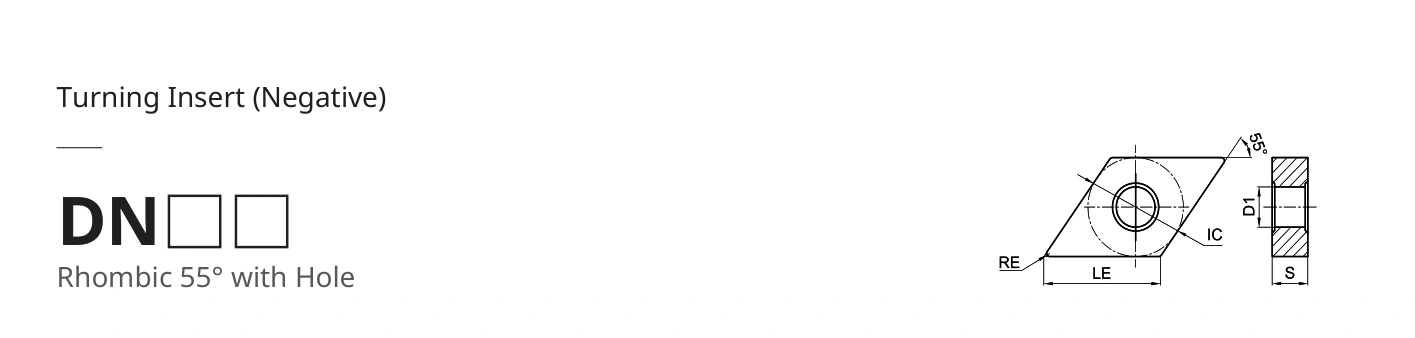

Negative turning insert, 55° rhombic, with hole. Inscribed circle diameter 9.525 mm; Thickness 4.76 mm; Nose radius 0.4 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 41 · View full tableData for DNMG110404-SF
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 41 of the original PDF ↗
