Holemaking / Technical reference

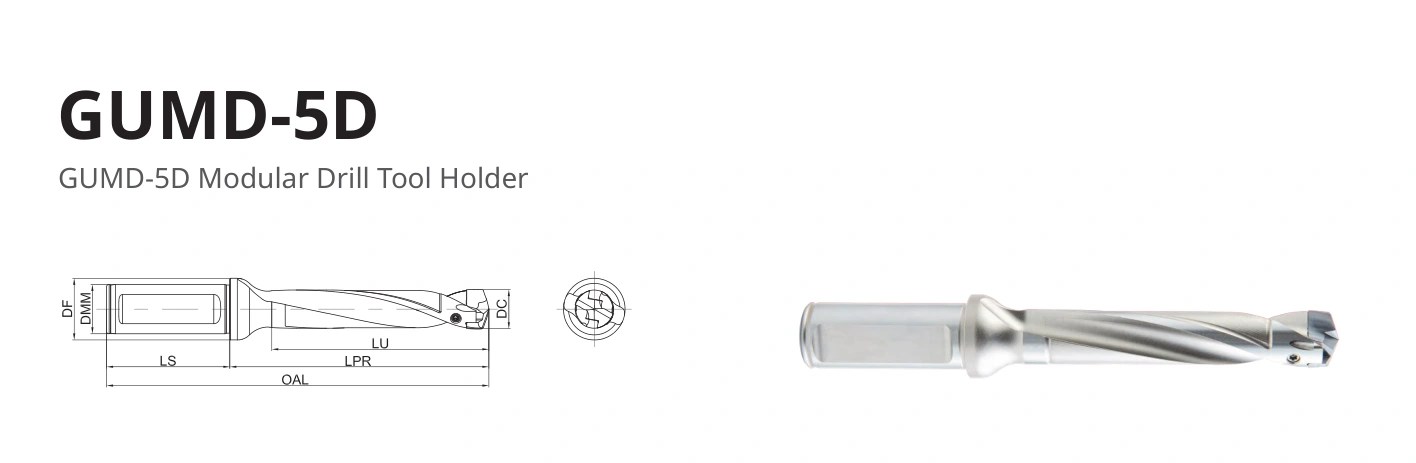

Technical designation: GUMD-100-5D-F16S
Drill body for a replaceable head. Shank diameter 16 mm; Overall length 116 mm; Usable length 53 mm.
Price and availability to be confirmed in the quotation.
Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 80 · View full tableData for GUMD-100-5D-F16S
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 80 of the original PDF ↗
