Milling / Technical reference

SDM-HNGU130720-GM

Name: SDM-HNGU130720-GM
Brand: SDM Cutting Tools
SKU: SDM-HNGU130720-GM

Technical designation: HNGU130720-GM

Indexable milling insert for face milling. Inscribed circle diameter 22.25 mm; Thickness 7.48 mm; Nose radius 2 mm.

Price and availability to be confirmed in the quotation.

Drawing and dimensions

Data for HNGU130720-GM

See the original PDF for this variant's drawing.

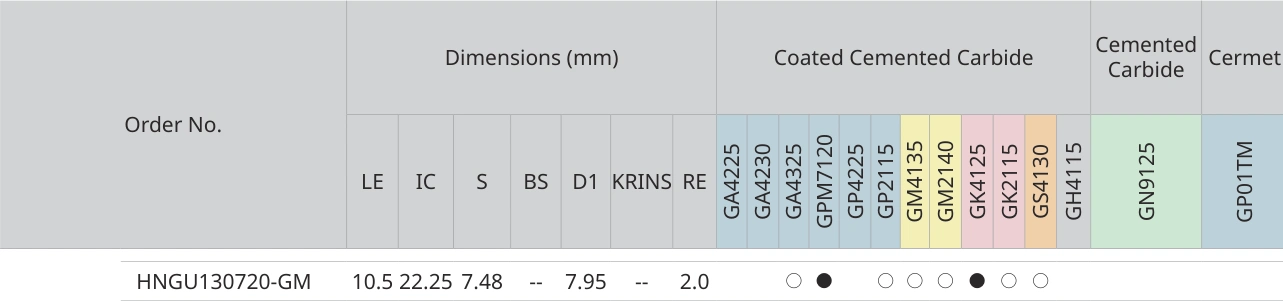

Original headers and row for HNGU130720-GM. On mobile, swipe to see all columns.

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
