Milling / Technical reference
Technical designation: MEC190-032R03W32-AN16
Milling cutter body for indexable inserts for shoulder milling. Cutting diameter 32 mm; Connection diameter 32 mm; Functional length 150 mm. 3 cutting positions.
Price and availability to be confirmed in the quotation.

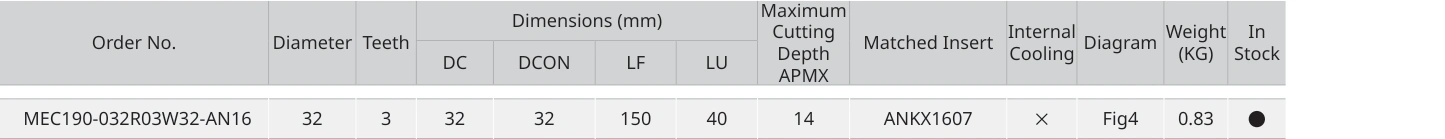

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 60 · View full tableData for MEC190-032R03W32-AN16
See the original PDF for this variant's drawing.
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 60 of the original PDF ↗
