Milling / Technical reference

SDM-QTD1604

Name: SDM-QTD1604
Brand: SDM Cutting Tools
SKU: SDM-QTD1604

Technical designation: QTD1604

Indexable milling insert for profile milling. Inscribed circle diameter 16 mm; Thickness 4 mm; Nose radius 8 mm.

Price and availability to be confirmed in the quotation.

Drawing and dimensions

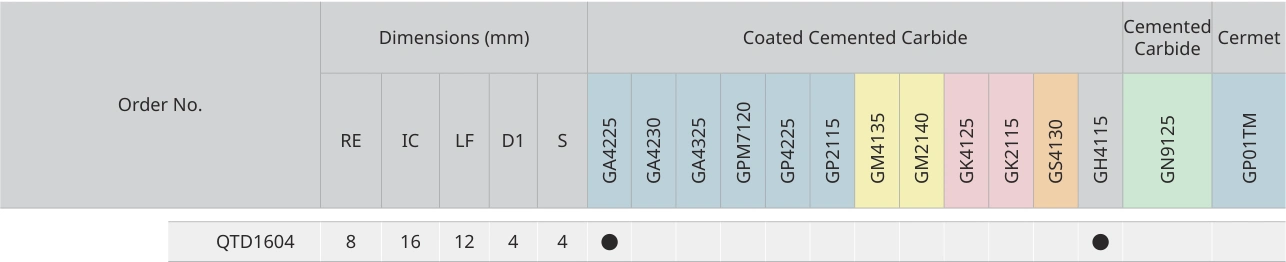

Data for QTD1604

Original headers and row for QTD1604. On mobile, swipe to see all columns.

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.

8

16

12

4
