Turning / Technical reference
Technical designation: SNMG120404-SF

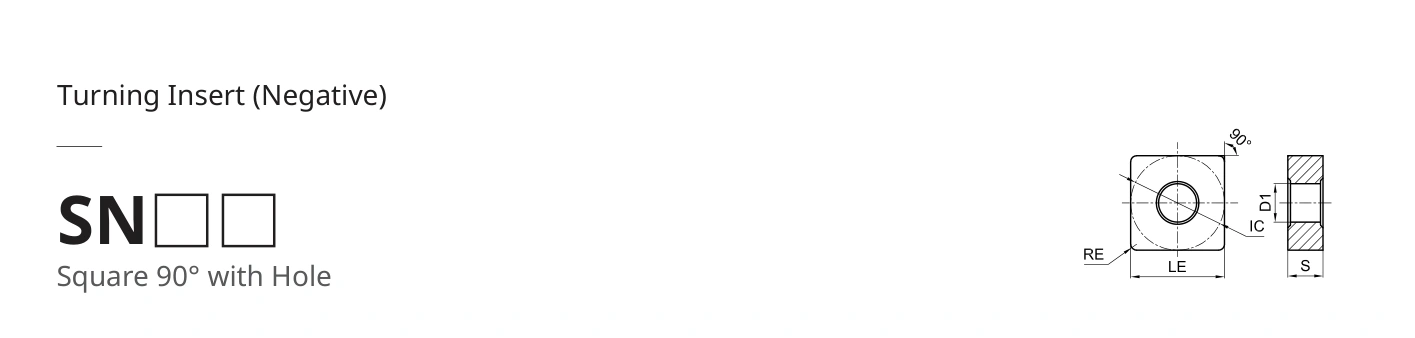

Negative turning insert, 90° square, with hole. Inscribed circle diameter 12.7 mm; Thickness 4.76 mm; Nose radius 0.4 mm.
Price and availability to be confirmed in the quotation.

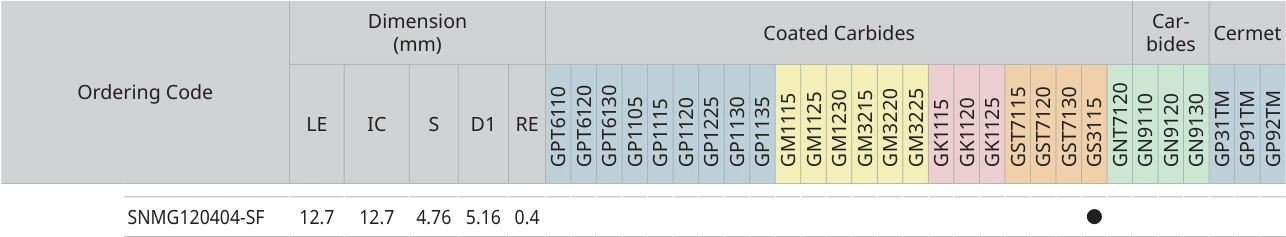

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 45 · View full tableData for SNMG120404-SF
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 45 of the original PDF ↗
