Turning / Technical reference
Technical designation: TCGX16T304-AL
Positive turning insert, 60° triangular, with hole. Inscribed circle diameter 9.525 mm; Thickness 3.97 mm; Nose radius 0.4 mm.
Price and availability to be confirmed in the quotation.

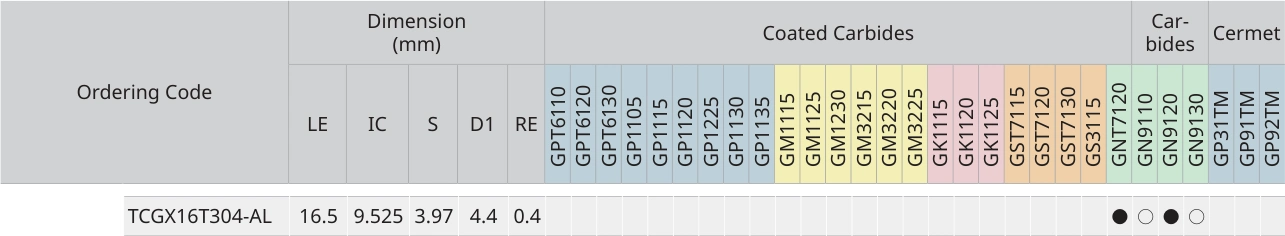

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 66 · View full tableData for TCGX16T304-AL
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 66 of the original PDF ↗
