Turning / Technical reference

SDM-VCMT160404-GP

Name: SDM-VCMT160404-GP
Brand: SDM Cutting Tools
SKU: SDM-VCMT160404-GP

Technical designation: VCMT160404-GP

Positive turning insert, 35° rhombic, with hole. Inscribed circle diameter 9.525 mm; Thickness 4.76 mm; Nose radius 0.4 mm.

Price and availability to be confirmed in the quotation.

Drawing and dimensions

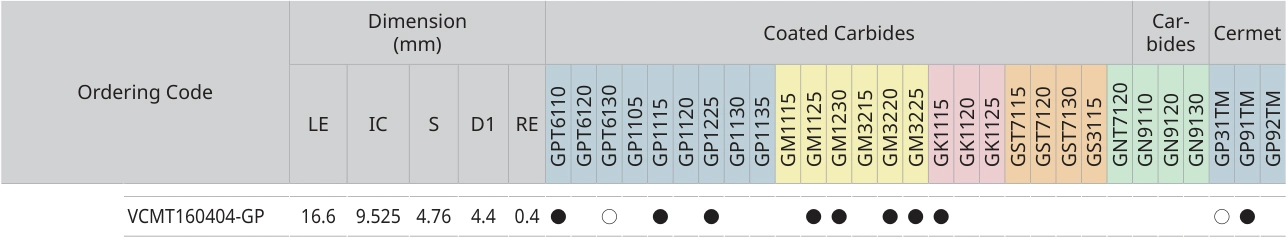

Data for VCMT160404-GP

Original headers and row for VCMT160404-GP. On mobile, swipe to see all columns.

Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
