Turning / Technical reference
Technical designation: CNMG160612-EL
Negative turning insert, 80° rhombic, with hole. Inscribed circle diameter 15.875 mm; Thickness 6.35 mm; Nose radius 1.2 mm.
Price and availability to be confirmed in the quotation.

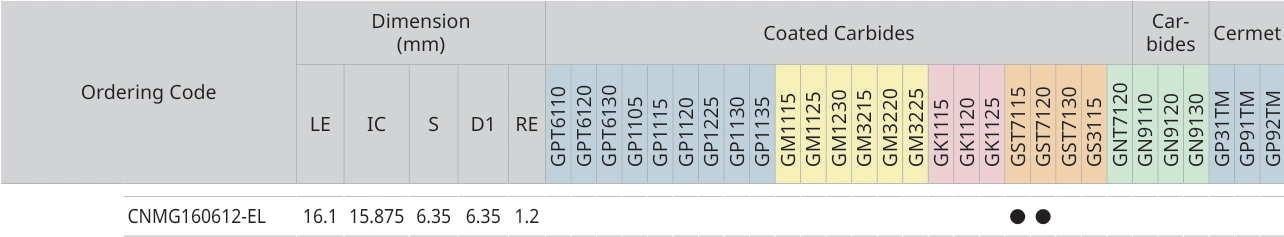

Original manufacturer documentDocument in its original language; images and PDF have not been translated.PDF page 36 · View full tableData for CNMG160612-EL
Values and tolerances follow the original headers. Interpret catalogue symbols using the PDF legend; they do not indicate current stock.
View page 36 of the original PDF ↗
